Yom2emeet : scheduling applicatin for Korean college student

Description

Implemented automatic scheduling detection algorithm

Process pipeline : detection Everytime schedule image

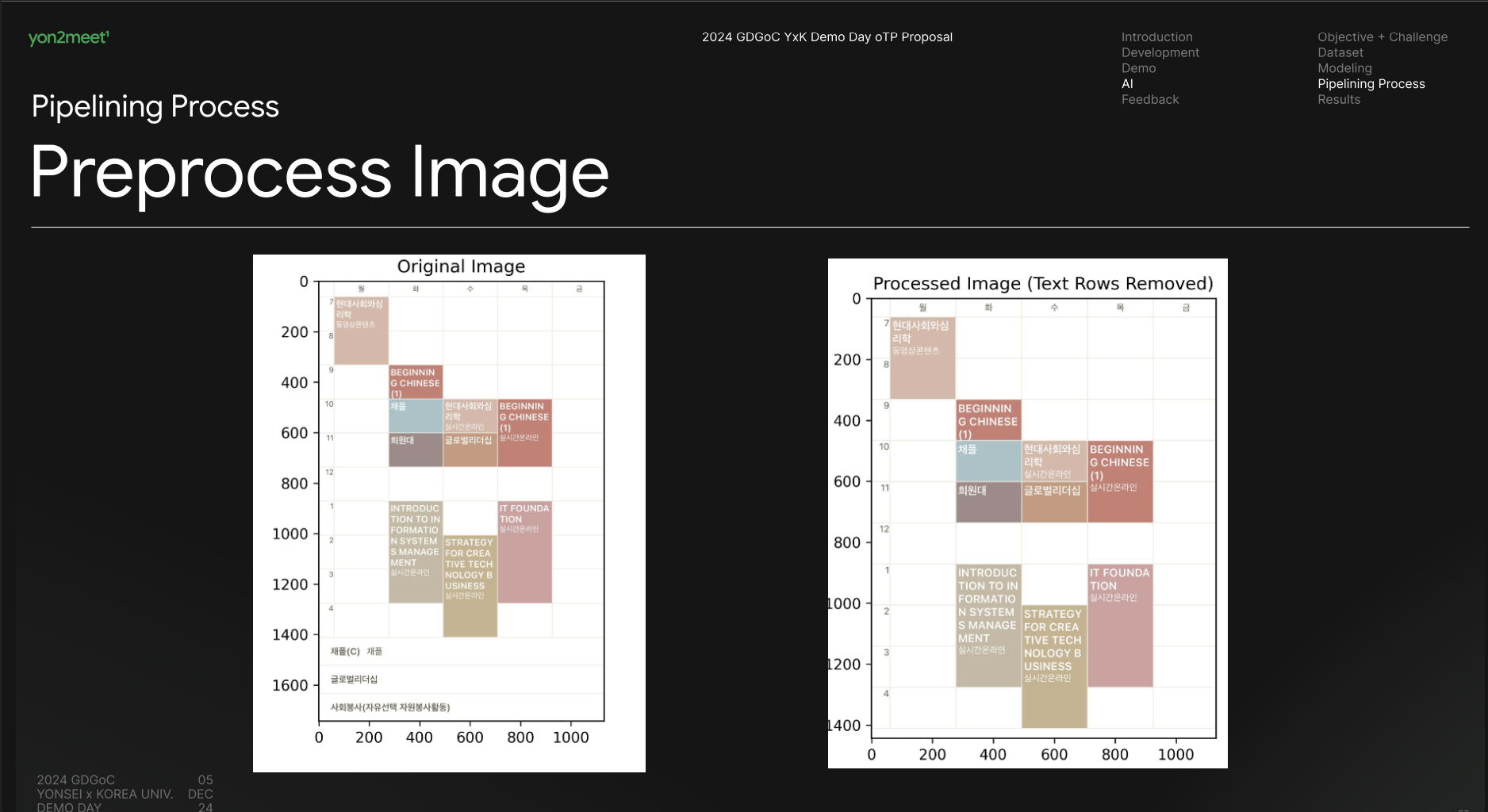

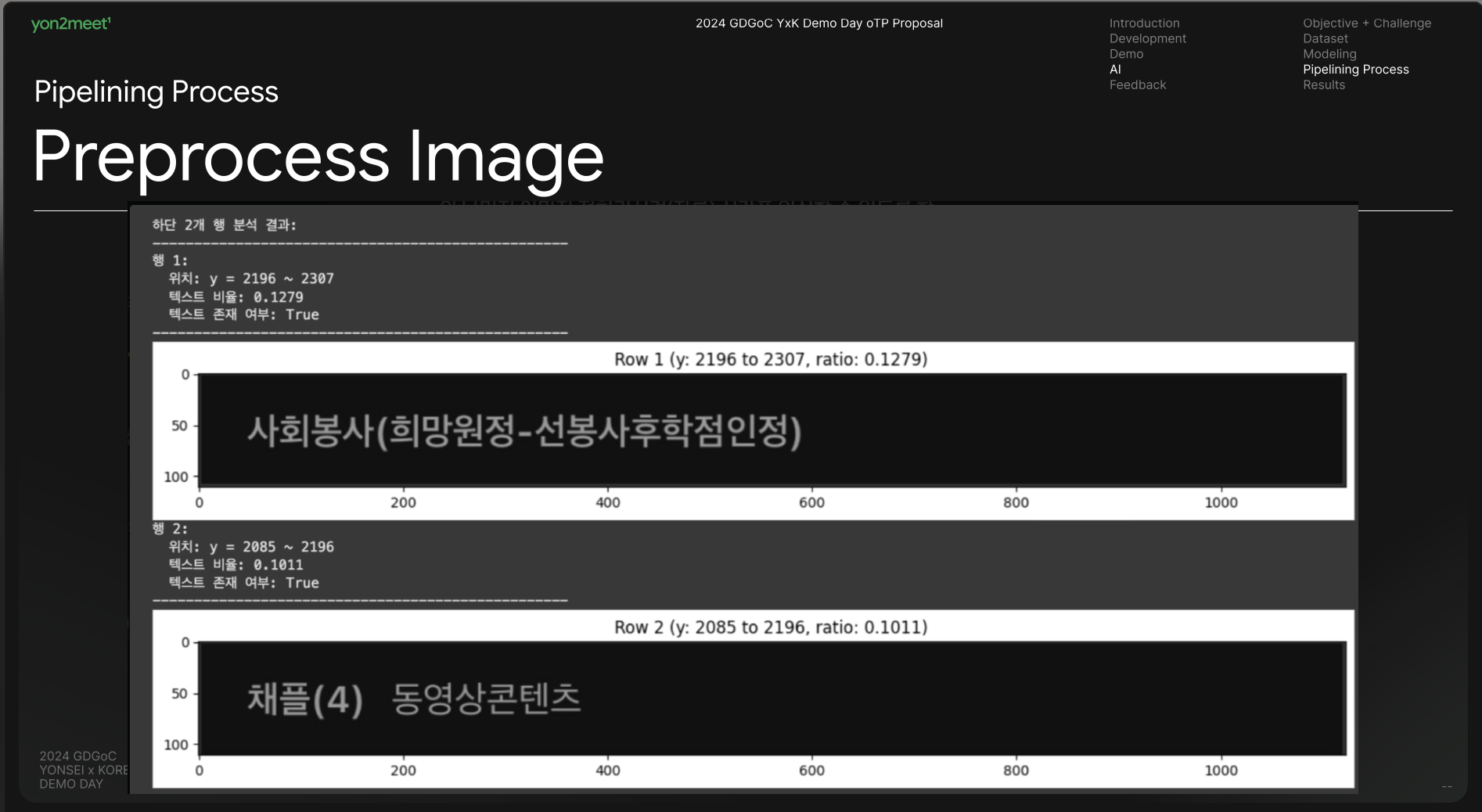

  • 1. 에브리타임 시간표에 존재하는 비대면 Row 제거 (Remove needless info from Everytime image)
  • Result of 1.

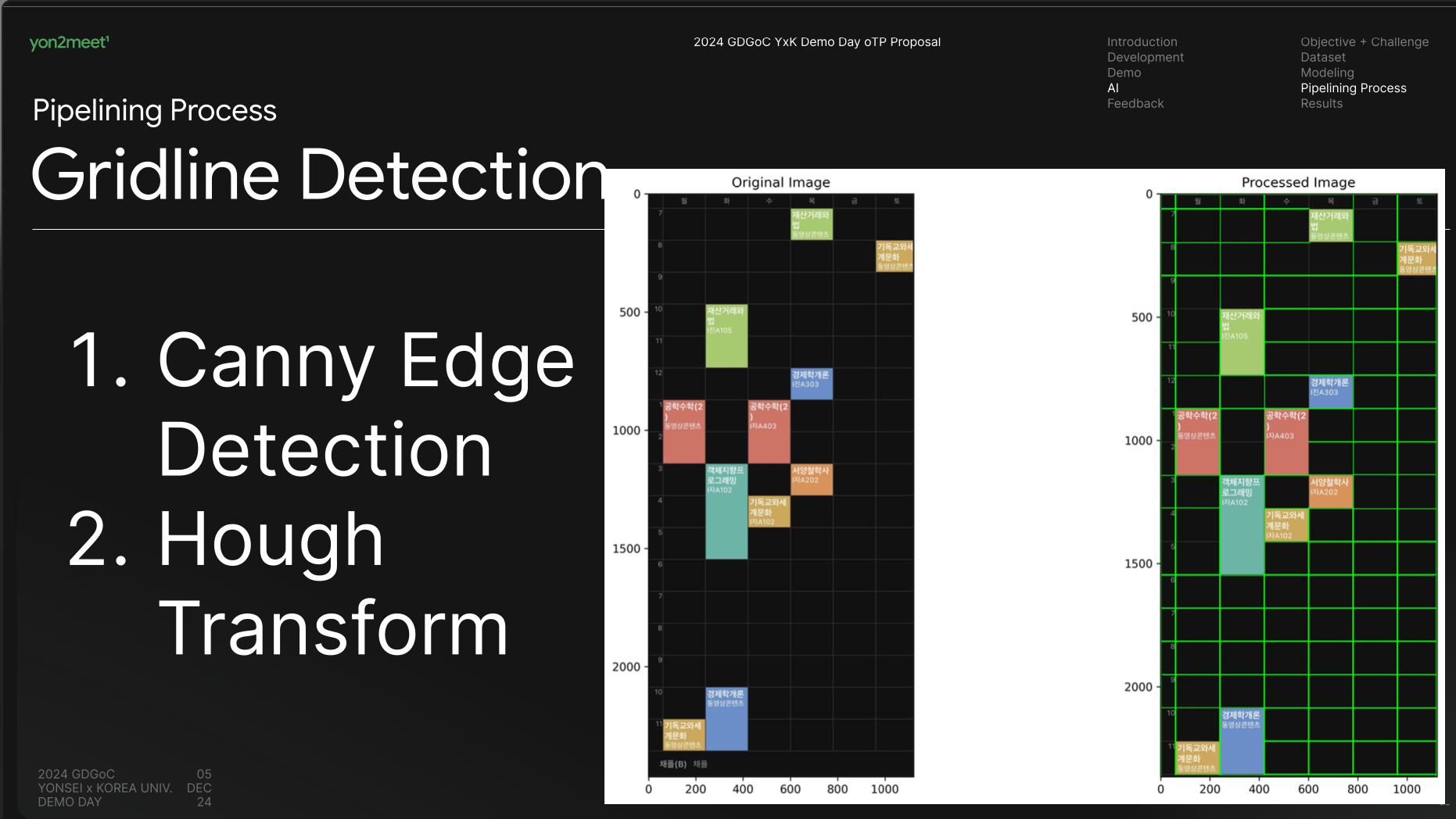

  • 2. Gridline detection using Canny edge detection, Hough transform

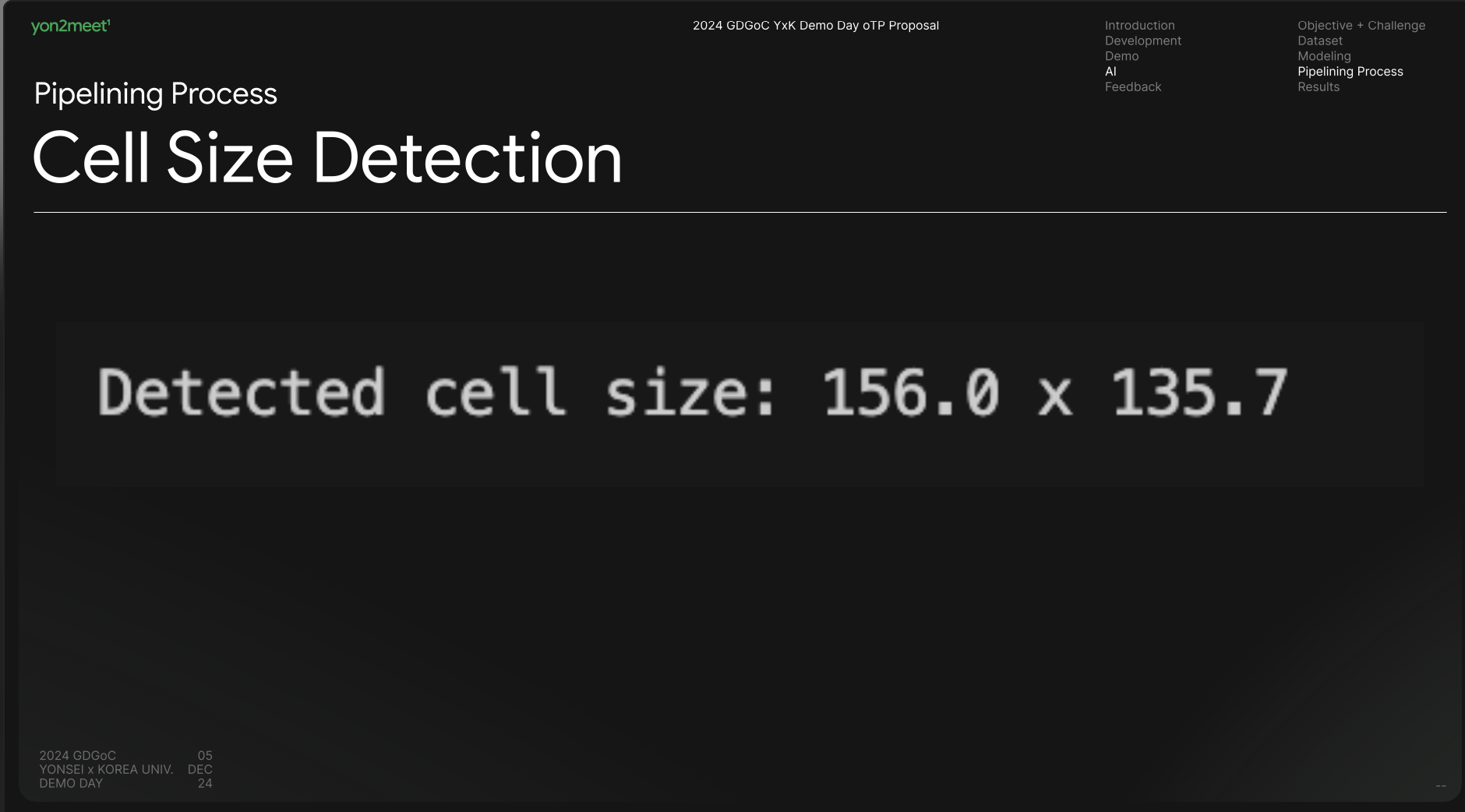

  • 3. To detect the cell size, filtering the distance of grid line

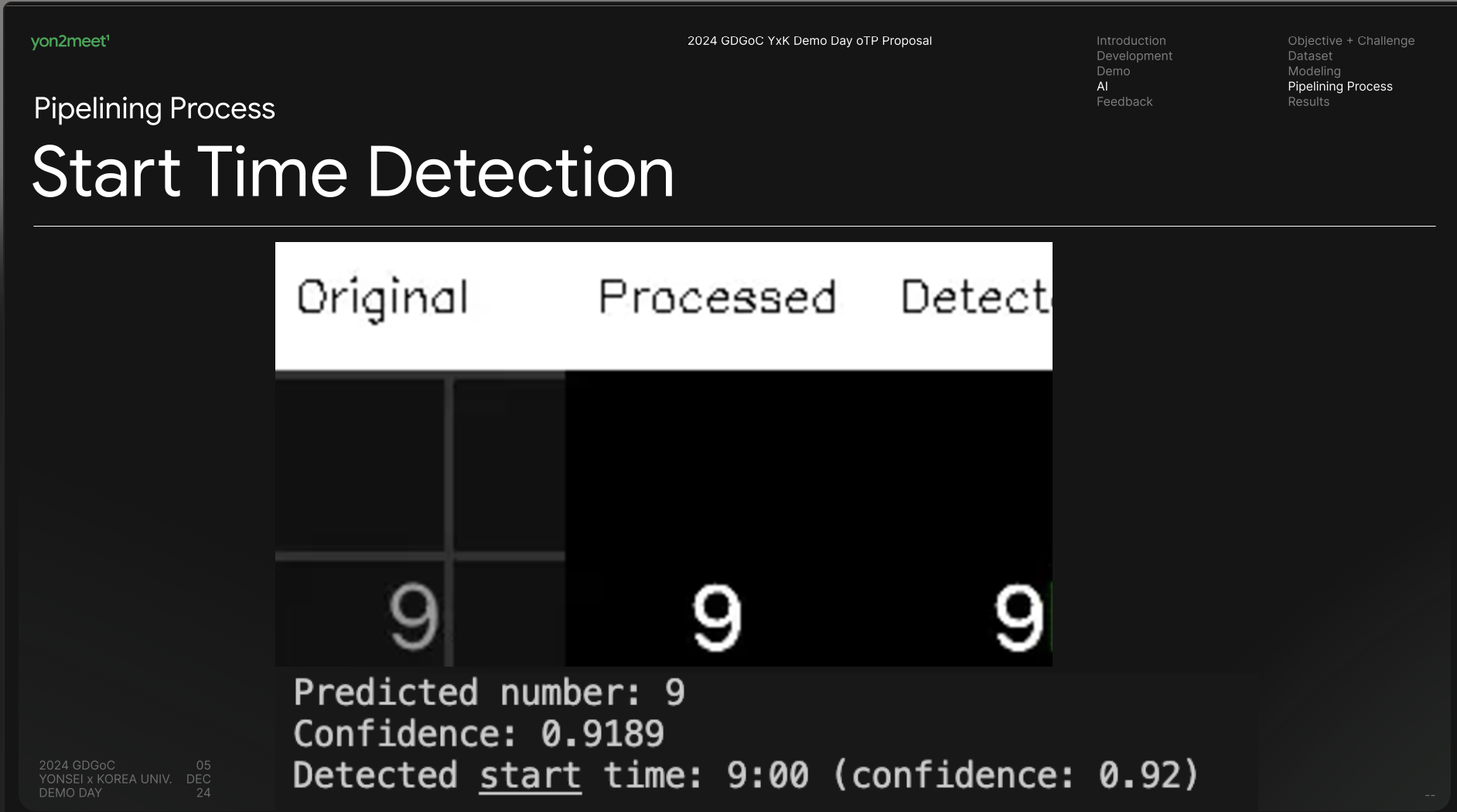

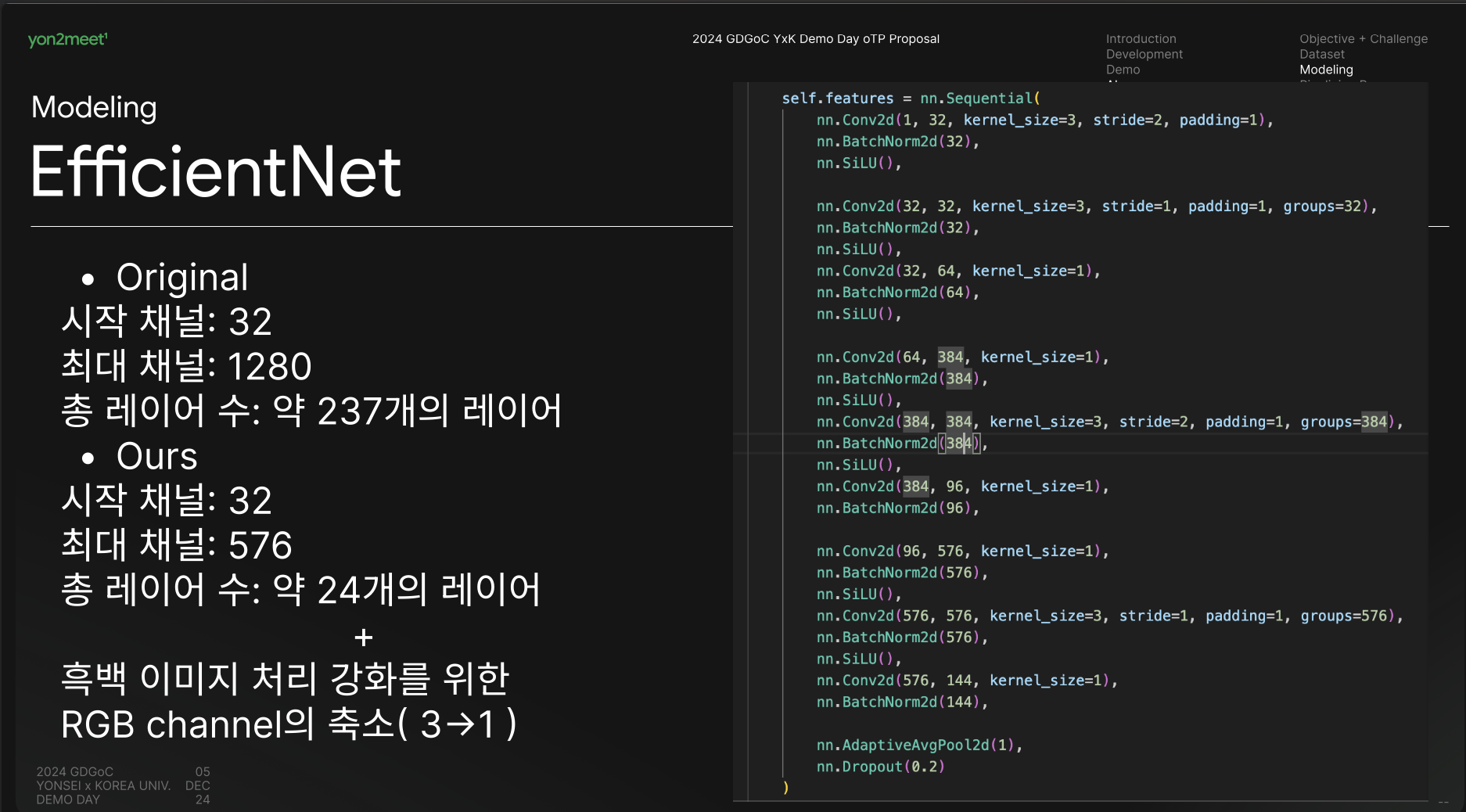

  • 4. Using Quantizated EfficienNet, Detect start time

  • 4. Using information of 1~4, Calculate the cell size

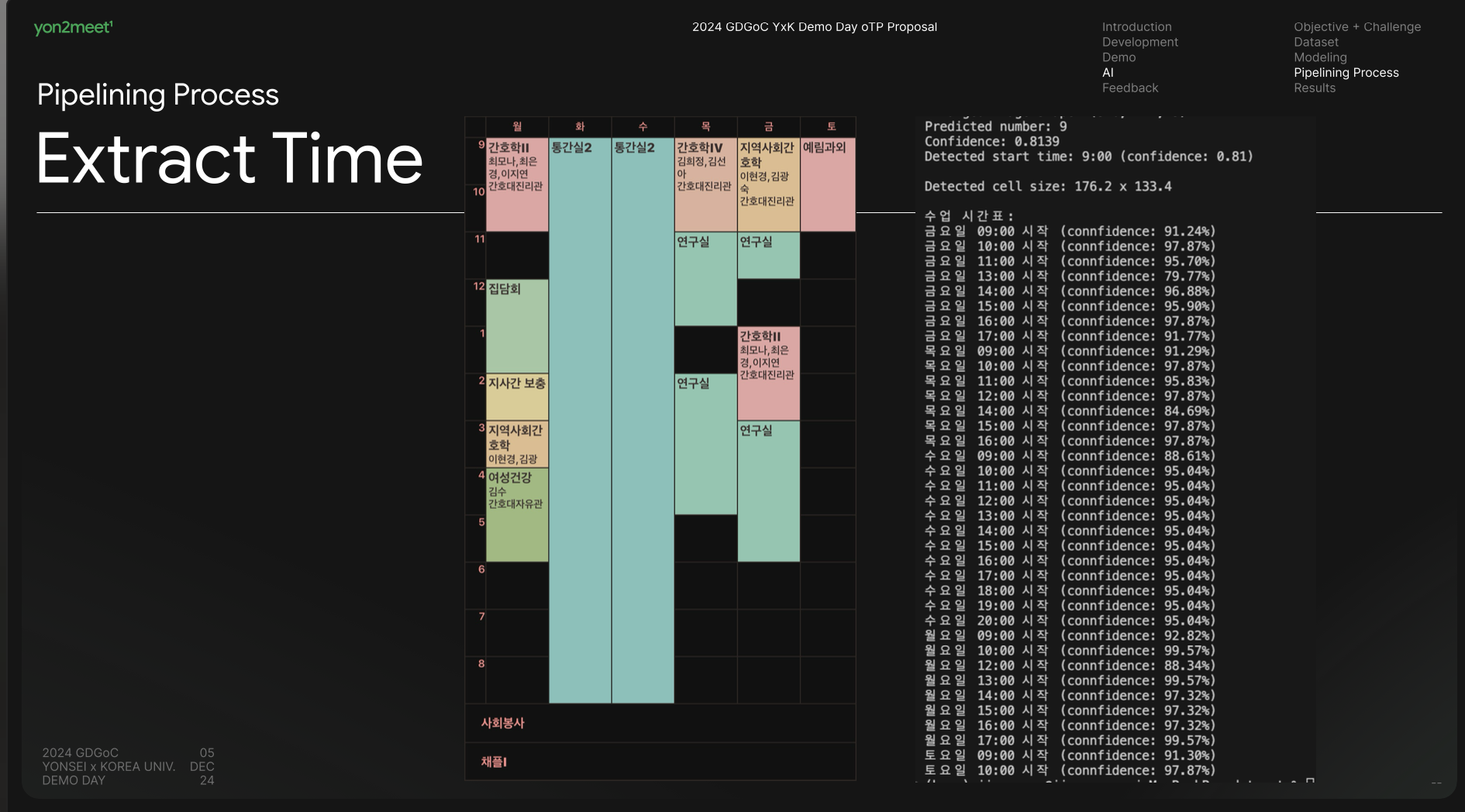

  • 5. Extract the day, time of personalized image

Model training
